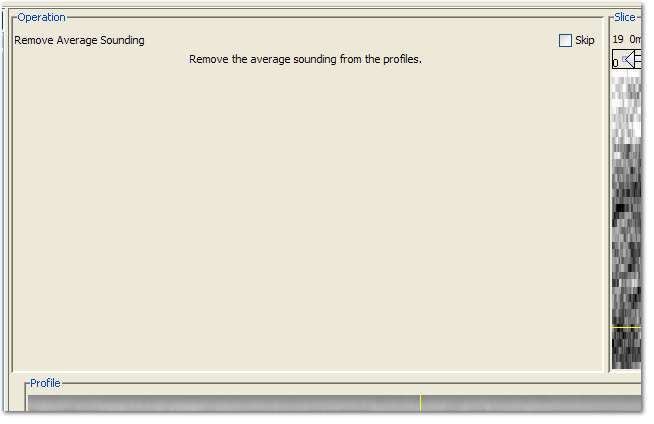

4.5.6 Remove Average Sounding
This step removes background noise (horizontal banding) in profiles by subtracting an average of all scans/traces. There are no parameters to enter for this.
