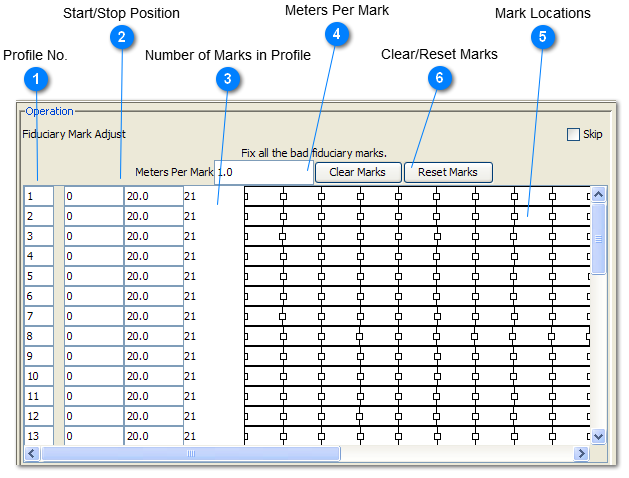

4.5.3 Fiduciary Mark Adjust
NOTE: In most cases this part can be greatly simplified, particulary when a survey wheel is used. In these cases you can skip the entire step.
 Profile No.
These number correspond to profiles. The first profile is profile no. 1.
|
 Start/Stop Position
These columns list the starting and stopping position of each profile.
|
 Number of Marks in Profile
ArchaeoFusion tallies the number of marks in each file and highlights this number red if it is different than the mode value. This makes identifying profiles with missing/extra marks easier.
|
 Meters Per Mark
Enter the number of meters between each mark
|

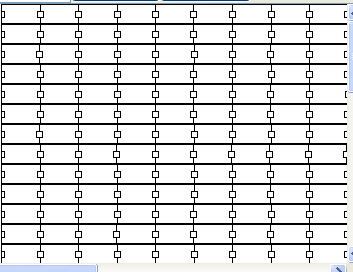

 Mark Locations
The mark locations for each profile are displayed in this window. They can be dragged using the mouse, and new marks added and deleted using the right mouse button.
|
 Clear/Reset Marks
Click Clear Marks to remove them all from the profiles. Click Reset Marks to add the original marks back in.
|
