The following steps are required to get to the GPR Loader:
-
From the Main Menu, create a New Survey or Edit an existing Survey
-
In the Survey Tool select File, Add Tiles
3. In the Load File dialog, enter parameters for a GPR tile (often called "grid" or "block"). If a GPR reflection profile format is chosen in this dialog, it will prompt you to load GSSI or S&S files when you click Select Files.
4. Browse to those files and select all of them, then click Open. This will open the GPR Loader and load the reflection profiles one by one (this may take some time).

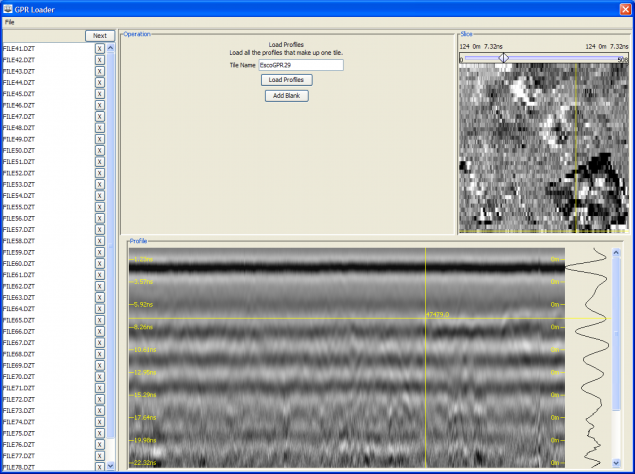

5. The first operation in the GPR loader is called Load Profiles. Profiles should already be loaded from the previous step, but you can load more using the Load Profiles button. Enter a name for the 3D GPR Tile that you will create. If needed, add a blank profile as a space holder, in case some transects were skipped during data collection.
6. Click Next.
